Cat6A Shielded, "All in One" RJ45, Tool-less/110/Krone Punchdown

Cat6A Shielded, "All in One" RJ45, Tool-less/110/Krone Punchdown

Model: UM2RJ45-6AS
  • SKU: 907215
$10.03
  • Ships in 1-3 business days

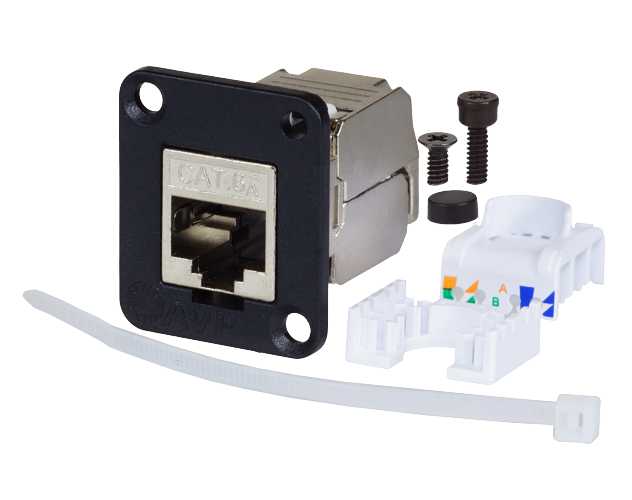

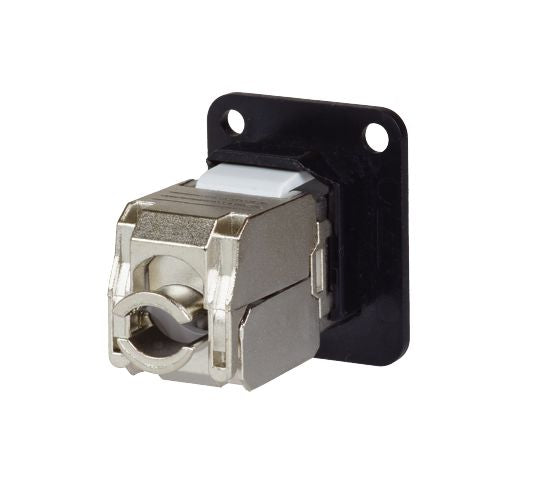

AVP Maxxum, Cat6A Shielded, "All in One"
RJ45, Tool-less/110/Krone Punchdown,
23-26AWG, stranded or solid.
Adapter Plate(s) and/or Hardware.
Black MIS Color Code Cap included.

Maxxum Single D Mount, AVP Premium Shielded IDC Punchdown for Cat3 to Cat6A Shielded or Unshielded Applications, Zinc Die-Cast Body with Nickel Plate, Gold plated contacts, rated 750 cycles, TIA/EIA 568C.2 10G & ISO/IEC 11801 Standard, Tool-Less and IDC retention Caps, Instruction Sheet. Adapter Plate(s) and/or Hardware.

• T568A/T568B
• Zinc Die-Cast with Nickel Plate
• 50 Micro-Inch Gold plated Contacts
• Phosphor Bronze IDC contacts with Nickel/tin plate
• 750 Cycles Minimum Mechanical Durability

• Contact Bracket PC UL 94V-0
• Nickel plated Phosphor Bronze contacts with 50 Micro-Inch Gold plate
• Phosphor Bronze IDC with Nickel/tin plate
• IDC Caps PC+Glass Fiber
• PCB FR4 UL
• Warranty: 5 Years


    Product & Designation Drawing . . . . . . . . . . . . . . . PDF
    Installation Instruction UM2RJ45-6AS . . . . . . . . . . .PDF
